Wind Turbine for Rooftop 2kW All-Direction low start up 2kW Vertical Wind Generator
| Minimum Order Quantity: | 1 | Price: | 2600$ |
|---|---|---|---|
| Packaging Details: | PLYWOOD CASE | Delivery Time: | 15-25 DAYS |
| Payment Terms: | T/T,L/C | Supply Ability: | 300UNITS PER MONTH |
| Place of Origin: | China | Brand Name: | BF |
| Certification: | CE | Model Number: | BF-H-2K |
|
Detail Information |
|||
| Material: | Q235&FRP | Working Tempreture: | -45-60℃ |
|---|---|---|---|
| Rotor Diameter (m): | 2.2 | Height Of Blades: | 2.6 |
| Rated Rotor Speed (m/s): | 180r/min | Speed Regulation Method: | Electromagnetic Control |
| Top Weight (kg): | 155kg | Start Up Wind Speed(m): | 2m/s |
| Sweep Wind Area(㎡): | 3.38 | Survival Wind Speed(m): | 50 |
| Rated Wind Speed(m/s): | 11 | ||
| Highlight: | 2kW rooftop wind turbine,vertical wind generator low startup,all-direction 2kW VAWT |
||
Product Description
BF-H Series 2kW Vertical Axis Wind Turbine
Our BF-H series wind power generating system features advanced vertical axis technology with magnetic suspension structure, delivering exceptional wind energy efficiency and reliable performance for residential and small business applications.
Key Features
- High wind energy coefficient with low startup wind speed (2.8 m/s)
- Superior anti-wind capability and stable operation
- Noise-free performance with maintenance-free design
- Advanced anti-corrosion treatment and sealing for long service life
- Captures wind from any direction without yaw mechanism
- Ideal for urban and suburban environments with turbulent wind flows
Technical Specifications
| Power (W) | 2000 |
| Rotor diameter (m) | 2.2 |
| Height of blade (m) | 2.6 |
| Material of blades and numbers | Glass Fiber Reinforced Plastic/5 |
| Rated rotor speed | 180 r/min |
| Speed regulation method | Electromagnetic control |
| Wind energy utilized coefficient | 30%-40% |
| Range of working temperature | -45℃ - 60℃ |
| Top weight (kg) | 155 |
| Start up wind speed (m/s) | 2 |
| Sweep wind area (㎡) | 3.38 |
| Survival wind speed (m/s) | 50 |
| Rated wind speed (m/s) | 11 |
| Tower type | Guy cabled tower |
| Service life | 20-25 years |

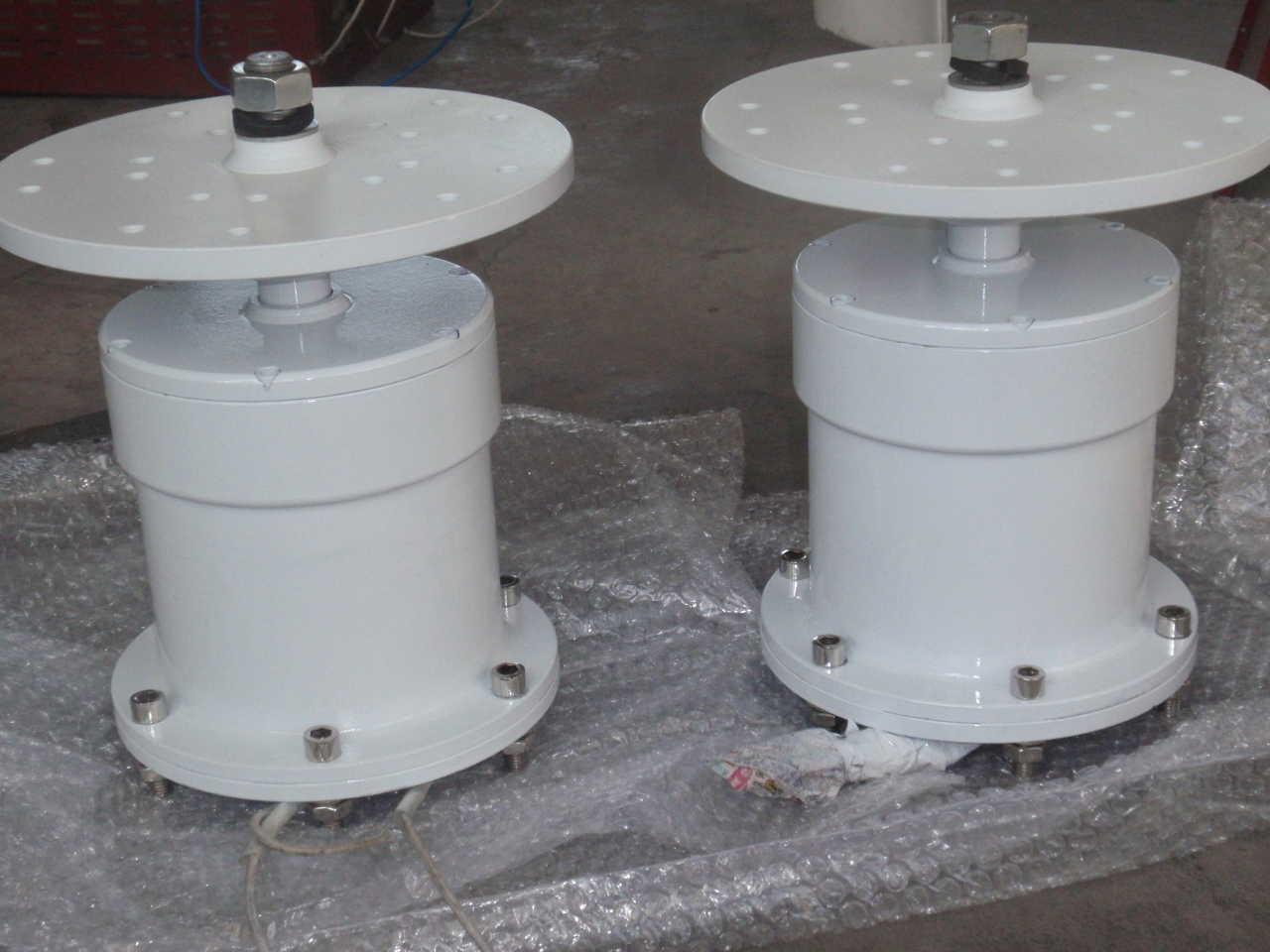

Generator Body
Features high-grade Neodymium Iron Boron permanent magnets, each tested for magnetic flux by authorized institutions. Engineered for low starting torque while maintaining high generating efficiency through optimized internal structure.

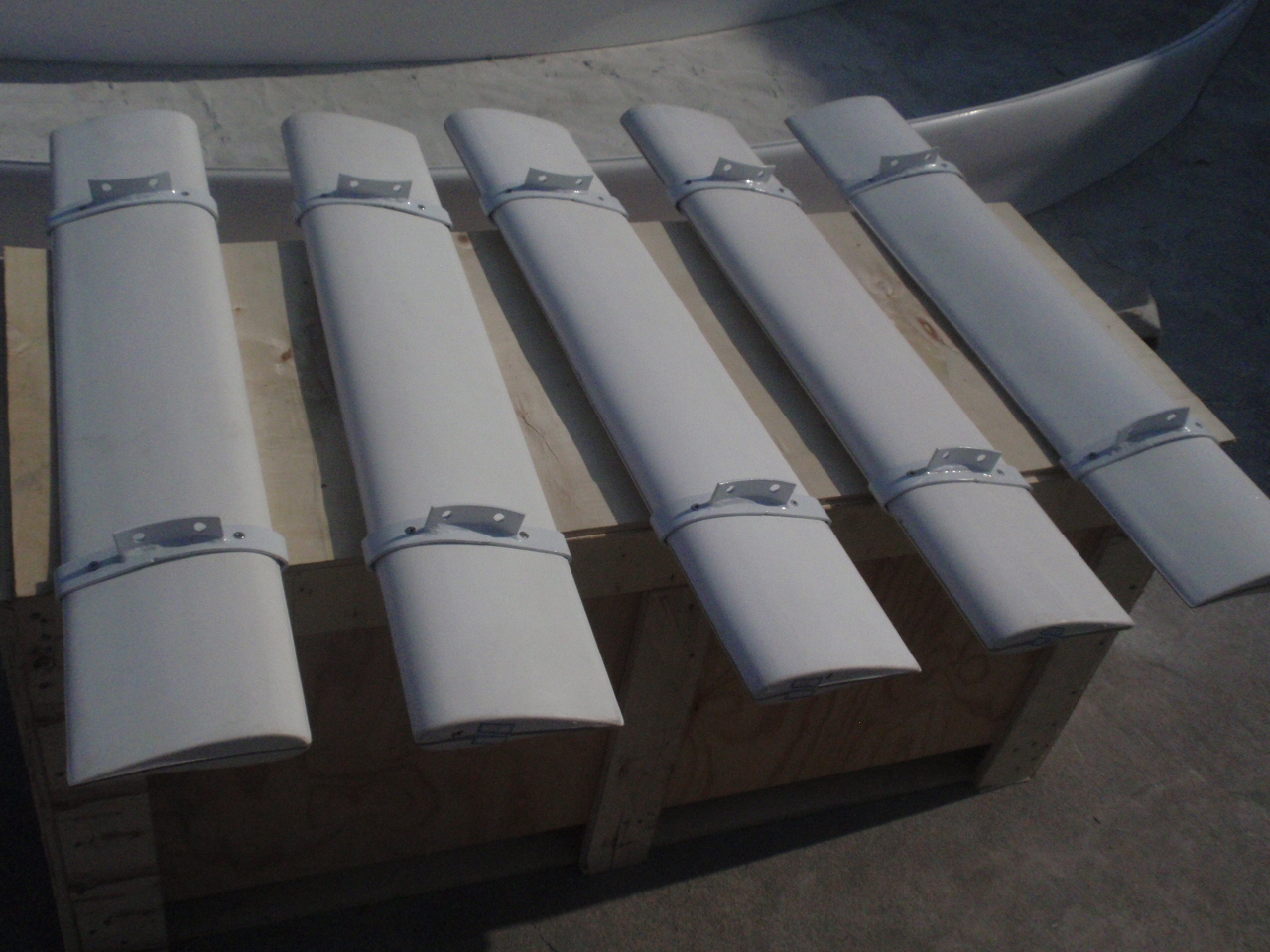

Blade Specifications
Streamline shape with 3 reinforced fiber plastic blades. Manufactured using unidirectional fiber fabric and epoxy resin molds with inner foam core construction. Designed for low noise operation, excellent balance, and superior fatigue resistance.
Wheel Hub & Connectors
Precision-made steel wheel hub connects blades to generator. Blades connectors constructed from Q235 plate with anti-corrosion surface treatment for durable performance.
Tower Options
Available in Q235 guy wire tower with anti-corrosion painting or free stand tower with hot dip galvanized plastic spraying for various installation requirements.
Additional Technical Specifications
- Generator Type: Permanent magnetic synchronous style
- Surface Treatment: Multi-layer painting including base coat (2 layers), anti-corrosion paint, and surface finish
- Complete System Includes: Base flange, guy wires, wire tighteners, ground anchors, nuts, screws, bolts, and cables
- Off-Grid System Requirements: 4 x 12V 100AH batteries (not included in base price)
- Certifications: CE product certificate and ISO factory report
