Complete Permanent Magnet Alternator for 3kW-5kW VAWT – Direct Drive, 48V/110V/220V for Wind Turbine Parts

Minimum Order Quantity:	1	Price:	4500$
Packaging Details:	PLYWOOD CASE	Delivery Time:	20-25 DAYS
Payment Terms:	T/T,L/C	Supply Ability:	500UNITS PER MONTH
Place of Origin:	China	Brand Name:	BF
Certification:	CE	Model Number:	BF-H-5K

Detail Information
Material:	Q235&FRP	Working Tempreture:	-45-60℃
Rotor Diameter (m):	4	Height Of Blades:	3.6
Rated Rotor Speed (m/s):	150r/min	Speed Regulation Method:	Electromagnetic Control
Top Weight (kg):	485kg	Start Up Wind Speed(m):	3.2m/s
Sweep Wind Area(㎡):	6.68	Survival Wind Speed(m):	50
Rated Wind Speed(m/s):	11

Product Description

Our VAWT Wind Turbine Generator System delivers exceptional performance with high-efficiency vertical axis wind turbine operation and low startup wind speed requirements.

Generator Overview

Our Permanent Magnet Generator (PMG) is specifically engineered for vertical axis wind turbines (VAWT), offering superior performance in low to medium wind speed conditions. With a high-efficiency design and robust construction, this generator ensures reliable energy conversion, minimal maintenance, and long-term durability in both on-grid and off-grid wind power systems.

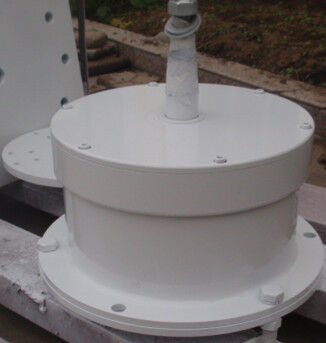

BF-H Series 5kW Generator Body

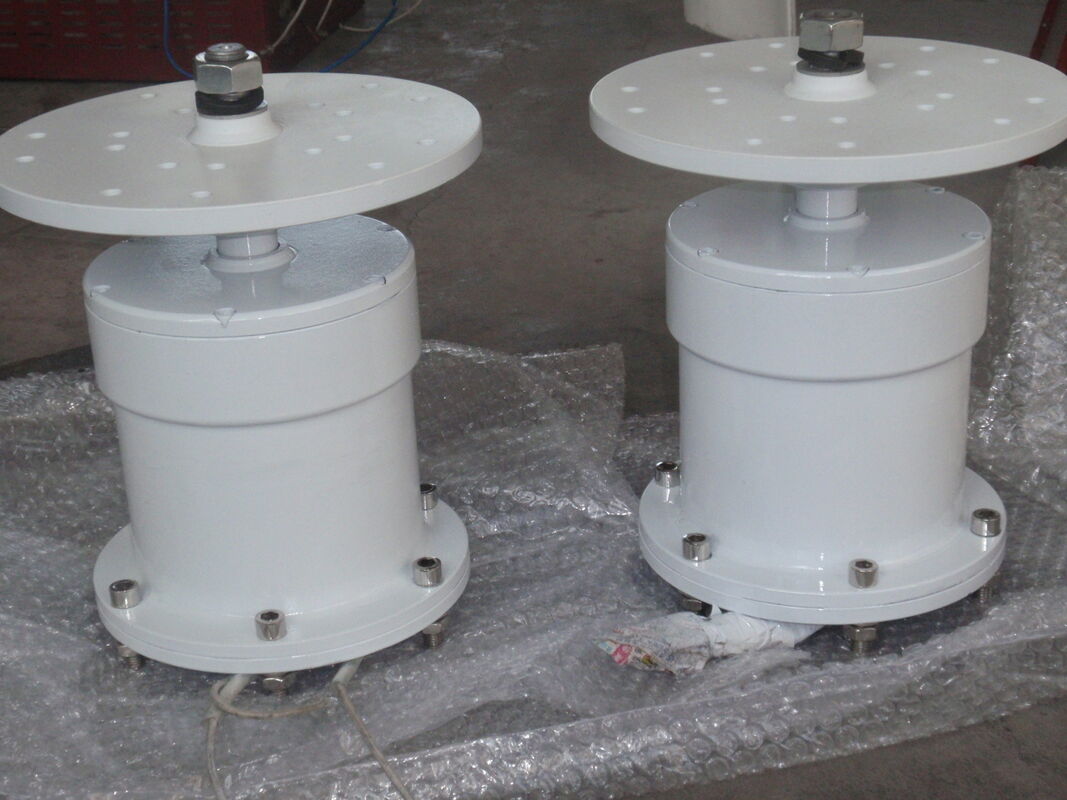

Generator Assembly

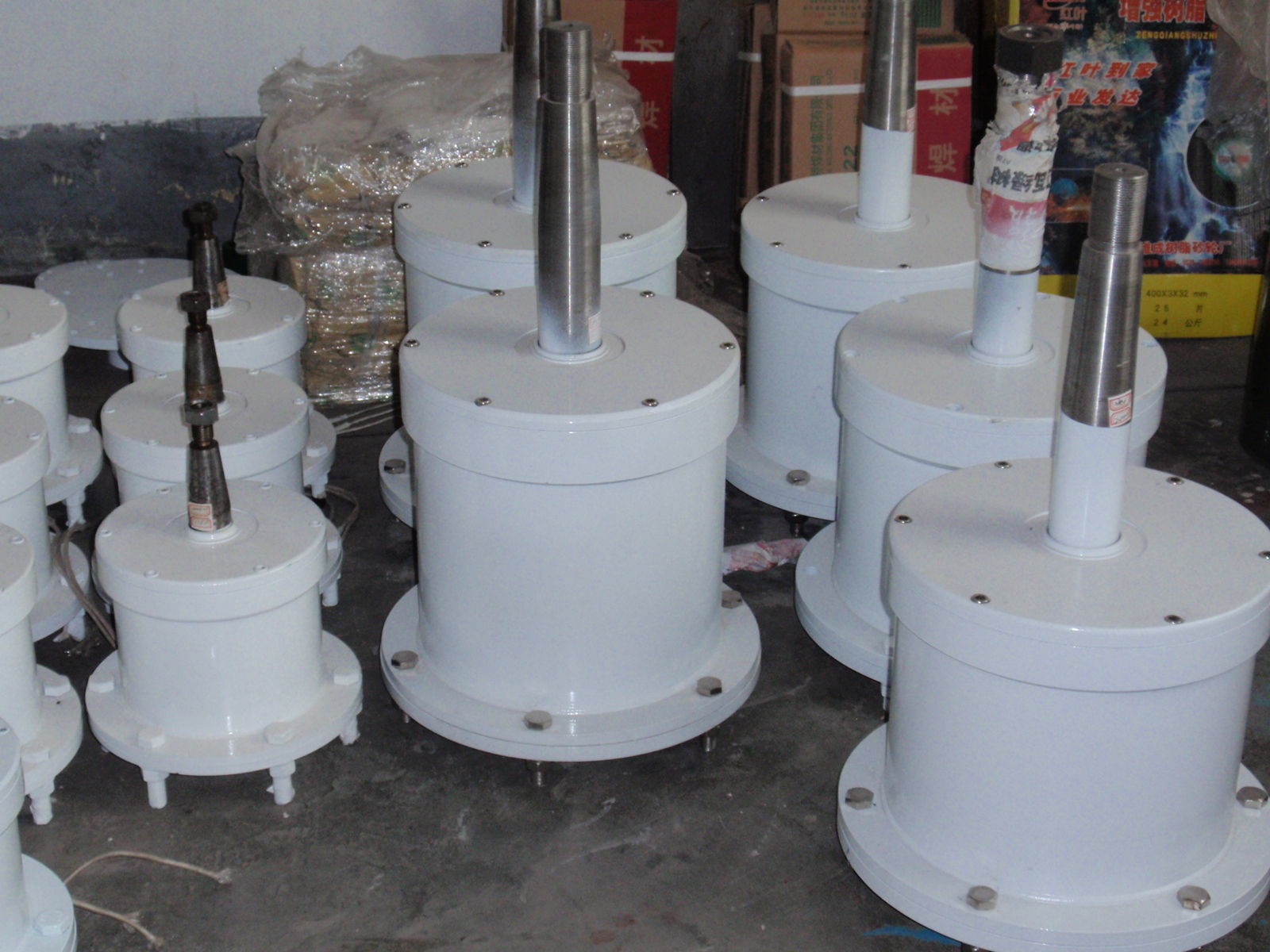

Internal Components

Generator Body Features

High-grade Neodymium Iron Boron permanent magnets
Each magnet tested for magnetic flux by authorized institutions
Engineered for low starting torque requirements
High generating efficiency through optimized internal structure
Robust construction for long-term reliability

Wheel Hub & Connectors

Precision-engineered steel wheel hub connects blades to generator with durable blade connectors constructed from Q235 plate featuring anti-corrosion surface treatment for extended performance life.

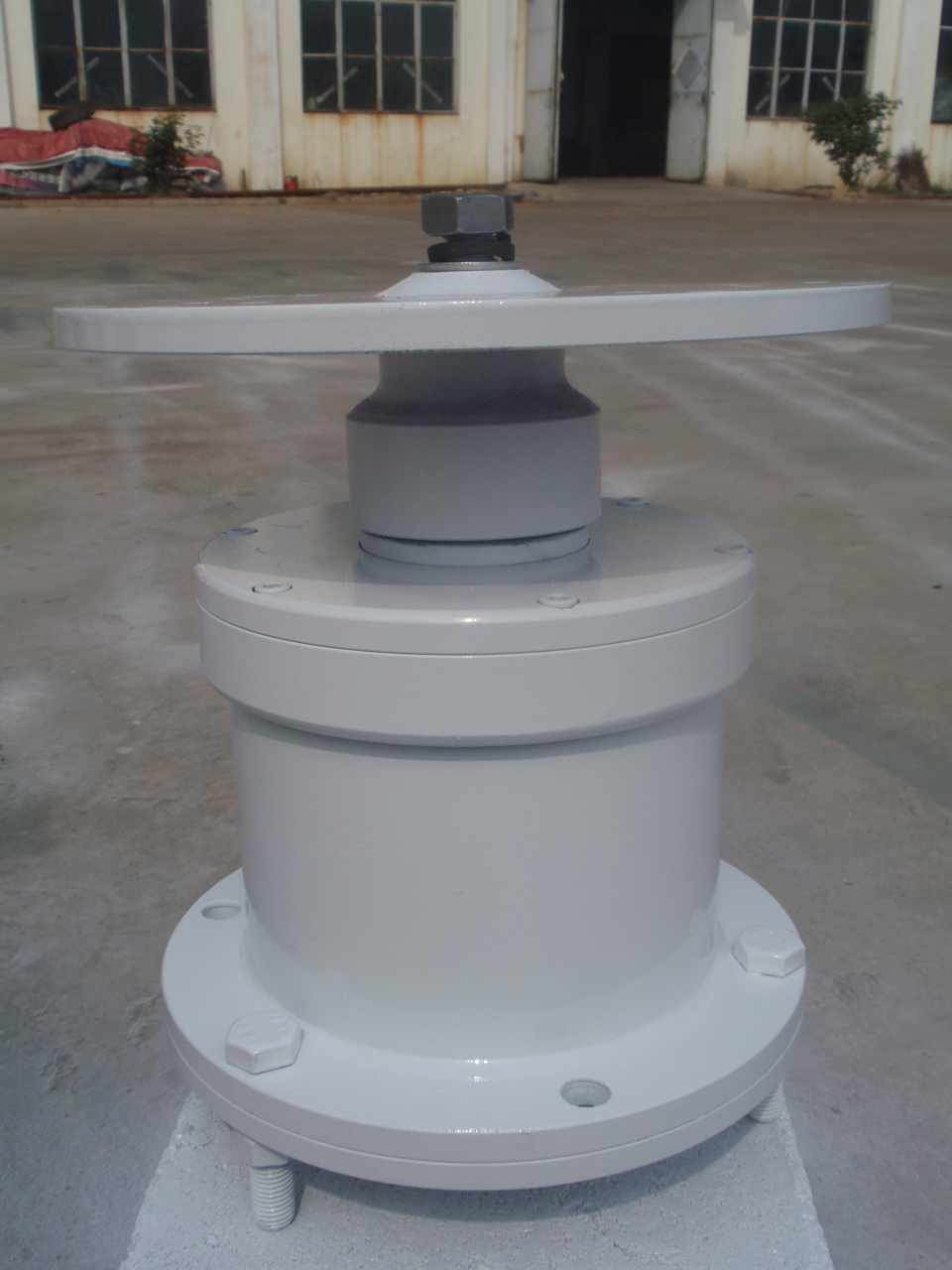

Wheel Hub Assembly

Installation Diagram

Component Details

Construction Specifications

Precision-made steel wheel hub
Blade connectors made from Q235 plate
Anti-corrosion surface treatment
Durable performance in harsh environments
Optimized for reliable blade connection

General Design Features

-Type:Three-phase AC Permanent Magnet Synchronous Generator (PMSG).
- Structure:Outer rotor design (preferred) to allow direct connection to the turbine rotor, providing smooth rotation.
- Excitation: High-grade Rare Earth Magnets (e.g., NdFeB) for high efficiency and no external excitation current required.
- Torque Characteristics: Ultra-low cogging torque (coreless designs can achieve near-zero start-up torque) to ensure generation starts in light breeze conditions (as low as 2.5 m/s).

Key Parameter Descriptions

Electrical Parameters

- Output Voltage:The generator outputs raw three-phase AC. This is typically rectified to DC (e.g., 48V, 96V, 220V, or 380V DC) by the charge controller for battery charging or grid connection.
- Frequency: Variable frequency, proportional to the rotor speed (e.g., 0–50 Hz).
- Efficiency: Typically >90% at rated load for PMSG designs.
