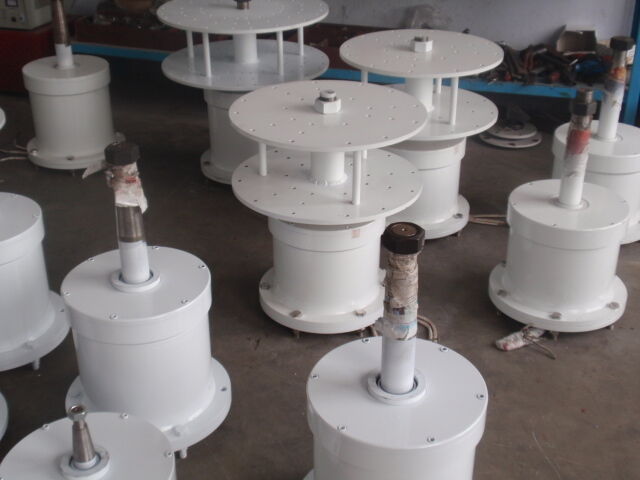

Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT

Minimum Order Quantity:	1	Price:	1599$
Packaging Details:	PLYWOOD CASE	Delivery Time:	20DAYS
Payment Terms:	T/T,L/C	Supply Ability:	600UNITS PER MONTH
Place of Origin:	China	Brand Name:	BF
Certification:	CE	Model Number:	BF-H-3K

Detail Information
Material:	Q235&FRP	Working Tempreture:	-45-60℃
Rotor Diameter (m):	4	Height Of Blades:	3.6
Rated Rotor Speed (m/s):	150r/min	Speed Regulation Method:	Electromagnetic Control
Top Weight (kg):	330kg	Start Up Wind Speed(m):	3.2m/s
Sweep Wind Area(㎡):	5.46	Survival Wind Speed(m):	50
Rated Wind Speed(m/s):	11

Product Description

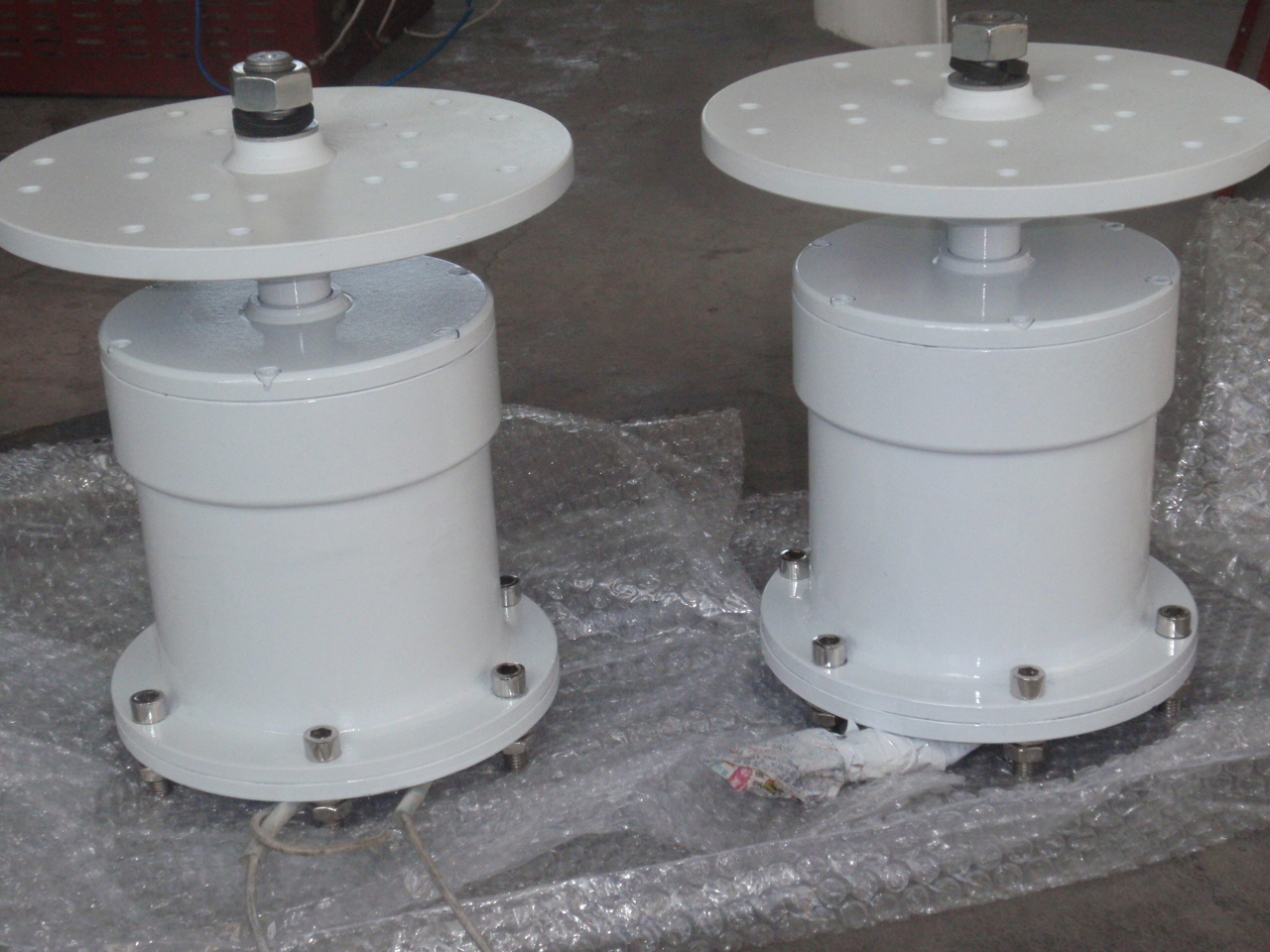

Robust Permanent Magnet Alternator for Vertical Axis Wind Turbine Systems

Generator Overview

Our Permanent Magnet Generator (PMG) is specifically engineered for vertical axis wind turbines (VAWT), offering superior performance in low to medium wind speed conditions. With a high-efficiency design and robust construction, this generator ensures reliable energy conversion, minimal maintenance, and long-term durability in both on-grid and off-grid wind power systems.

Internal Components

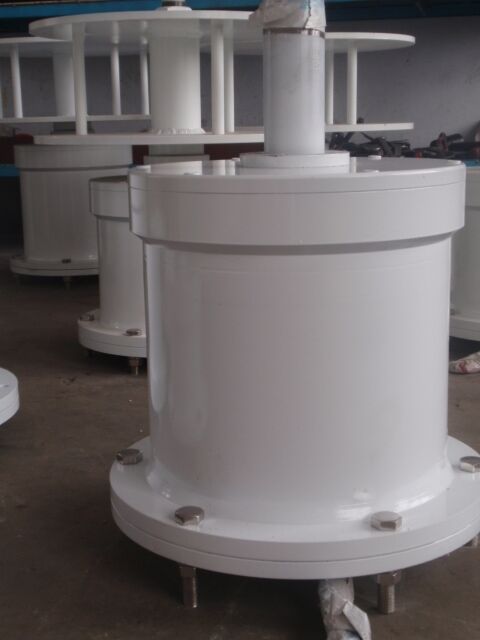

Generator Body Features

High-grade Neodymium Iron Boron permanent magnets
Each magnet tested for magnetic flux by authorized institutions
Engineered for low starting torque requirements
High generating efficiency through optimized internal structure
Robust construction for long-term reliability

Wheel Hub & Connectors

Precision-engineered steel wheel hub connects blades to generator with durable blade connectors constructed from Q235 plate featuring anti-corrosion surface treatment for extended performance life.

Wheel Hub Assembly

Installation Diagram
