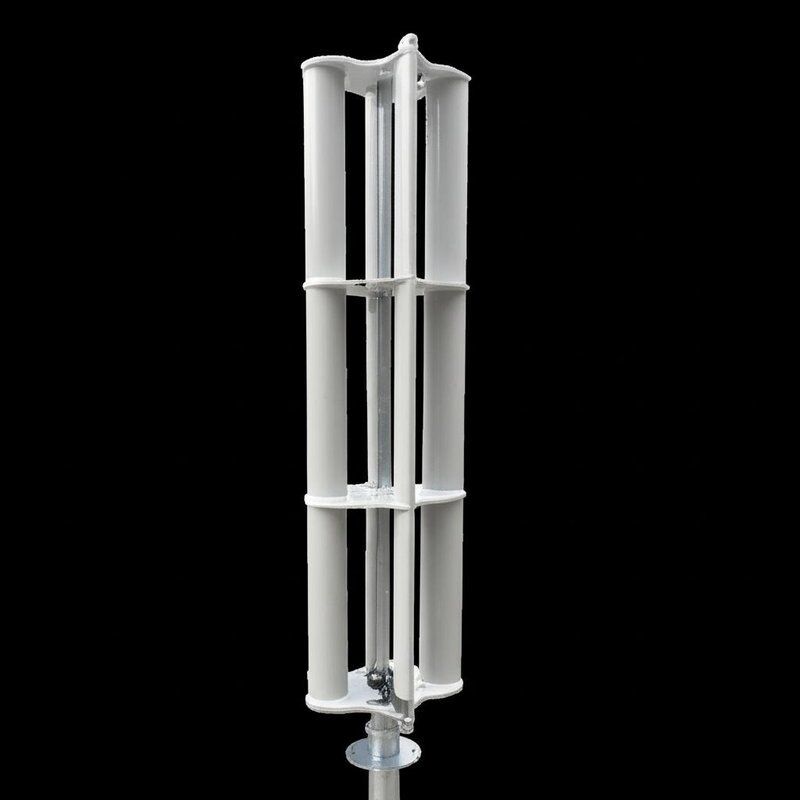

VAWT low rotor speed Wind Turbine Generator System 20kw with 3 phases output
| Minimum Order Quantity: | 1 | Price: | 18500$ |
|---|---|---|---|
| Packaging Details: | PLYWOOD CASE | Delivery Time: | 25-30 DAYS |
| Payment Terms: | T/T,L/C | Supply Ability: | 100UNITS PER MONTH |
| Place of Origin: | China | Brand Name: | BF |
| Certification: | CE | Model Number: | BF-H-10K |
|
Detail Information |
|||
| Material: | Q235&FRP | Working Tempreture: | -45-60℃ |
|---|---|---|---|
| Rotor Diameter (m): | 7 | Height Of Blades: | 8 |
| Rated Rotor Speed (m/s): | 80r/min | Speed Regulation Method: | Electromagnetic Control |
| Top Weight (kg): | 1800kg | Start Up Wind Speed(m): | 3.8m/s |
| Survival Wind Speed(m): | 50 | Rated Wind Speed(m/s): | 13 |
| Tower Type: | 133mm Steel Tube | Height Of Tower: | 12M |
| Material Of Blades And Numbers: | Glass Fiber Reinforce Plastic/5 | Output Voltage: | 220V/380V |
| Highlight: | 20kw VAWT wind turbine generator,low rotor speed wind turbine,3 phase output wind generator |
||
Product Description
BF-H Series 20kW Vertical Axis Wind Turbine
Our BF-H-series wind power generating system features advanced vertical axis technology with magnetic suspension structure, delivering exceptional wind energy efficiency and reliable performance for residential and small business applications.
Key Features
- High wind energy coefficient with low startup wind speed (3.8m/s)
- Superior anti-wind capability and stable operation
- Noise-free performance with maintenance-free design
- Advanced anti-corrosion treatment and sealing for long service life
- Captures wind from any direction without yaw mechanism
- Ideal for urban and suburban environments with turbulent wind flows
Technical Specifications
| Power | 20KW |
| Rotor diameter | 7m |
| Height of blade | 8m |
| Material of blades and numbers | Glass fiber reinforce plastic/5 |
| Rated rotor speed | 80r/min |
| Output voltage | 220V/380V |
| Start up wind speed | 3.8m/s |
| Rated wind speed | 13m/s |
| Work speed | 3.8-25m/s |
| Security wind speed | 50m/s |
| Height of tower | 10m/12m |
| Top weight except tower | 1800kg |
| Tower type | 133mm steel tube |
| Wind energy utilized coefficient | 30%-40% |
| Suggested batteries information | 62pcs 12V 200AH |
| Speed regulation method | electromagnetic control |
| Range of working temperature | -45℃-60℃ |
Generator Body
Features high-grade Neodymium Iron Boron permanent magnets, each tested for magnetic flux by authorized institutions. Engineered for low starting torque while maintaining high generating efficiency through optimized internal structure.
Blade Specifications
Streamline shape with 3 reinforced fiber plastic blades. Manufactured using unidirectional fiber fabric and epoxy resin molds with inner foam core construction. Designed for low noise operation, excellent balance, and superior fatigue resistance.
Wheel Hub & Connectors
Precision-made steel wheel hub connects blades to generator. Blades connectors constructed from Q235 plate with anti-corrosion surface treatment for durable performance.
Tower Options
Available in Q235 guy wire tower with anti-corrosion painting or free stand tower with hot dip galvanized plastic spraying for various installation requirements.
On-grid Controller
Brake function activates when issues occur in on-grid inverter and disconnects from the state grid. Controller delivers stable current even in strong wind conditions with comprehensive indicators including wind energy, unload, delay stop, under voltage, and grid electricity. Features emergency brake button for forced rotation stop.
On-grid Inverter
Utilizes IPM from Mitsubishi as power components and American ATEMEL company microprocessor as figure controller. Features perfect protection, warning functions, MPPT (Maximum Power Point Tracking) technology, pure sine wave output, automatic grid synchronization, power factor close to 1, low harmonic content, and non-polluting power grid operation.
Performance Curves
Additional Technical Specifications
- Generator Type: Permanent magnetic synchronous style
- Surface Treatment: Multi-layer painting including base coat (2 layers), anti-corrosion paint, and surface finish
- Complete System Includes: Base flange, guy wires, wire tighteners, ground anchors, nuts, screws, bolts, and cables
- Off-Grid System Requirements: 64 x 12V 100AH batteries (not included in base price)
- Certifications: CE product certificate and ISO factory report
