Durable 10kW VAWT System with MPPT Controller - 20 Year Design Life

Minimum Order Quantity: 1 Price: 9500$
Packaging Details: PLYWOOD CASE Delivery Time: 20-25 DAYS
Payment Terms: T/T,L/C Supply Ability: 500UNITS PER MONTH
Place of Origin: China Brand Name: BF
Certification: CE Model Number: BF-H-10K

Detail Information
Material: Q235&FRP Working Tempreture: -45-60℃
Rotor Diameter (m): 6 Height Of Blades: 6.7
Rated Rotor Speed (m/s): 100r/min Speed Regulation Method: Electromagnetic Control
Top Weight (kg): 600kg Start Up Wind Speed(m): 3.8m/s
Survival Wind Speed(m): 50 Rated Wind Speed(m/s): 13
Tower Type: 133mm Steel Tube Height Of Tower: 10M
Material Of Blades And Numbers: Glass Fiber Reinforce Plastic/5 Output Voltage: 220V/380V

Product Description

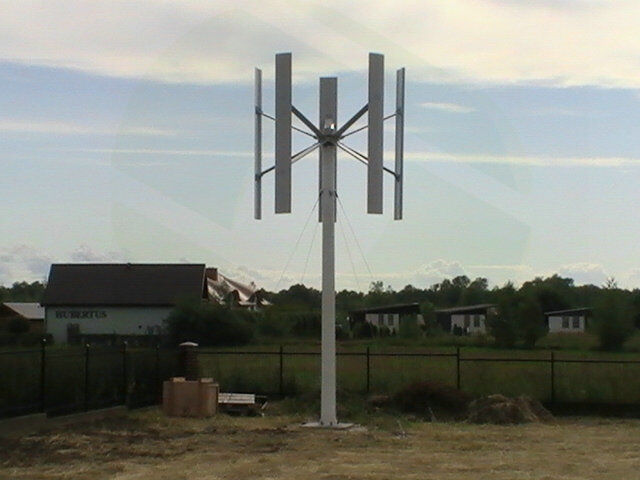

BF-H Series 10kW Vertical Axis Wind Turbine
Our BF-C-series wind power generating system features advanced vertical axis technology with magnetic suspension structure, delivering exceptional wind energy efficiency and reliable performance for residential and small business applications.
Key Features
  • High wind energy coefficient with low startup wind speed (3.8m/s)
  • Superior anti-wind capability and stable operation
  • Noise-free performance with maintenance-free design
  • Advanced anti-corrosion treatment and sealing for long service life
  • Captures wind from any direction without yaw mechanism
  • Ideal for urban and suburban environments with turbulent wind flows
Technical Specifications
Power 10KW
Rotor diameter 6m
Height of blade 6.7m
Material of blades and numbers Glass fiber reinforce plastic/5
Rated rotor speed 150r/min
Output voltage 220V/380V
Start up wind speed 3.8m/s
Rated wind speed 13m/s
Work speed 3.8-25m/s
Security wind speed 50m/s
Height of tower 10m/12m
Top weight except tower 600kg
Tower type 133mm steel tube
Wind energy utilized coefficient 30%-40%
Suggested batteries information 36pcs 12V 200AH
Speed regulation method electromagnetic control
Range of working temperature -45℃-60℃

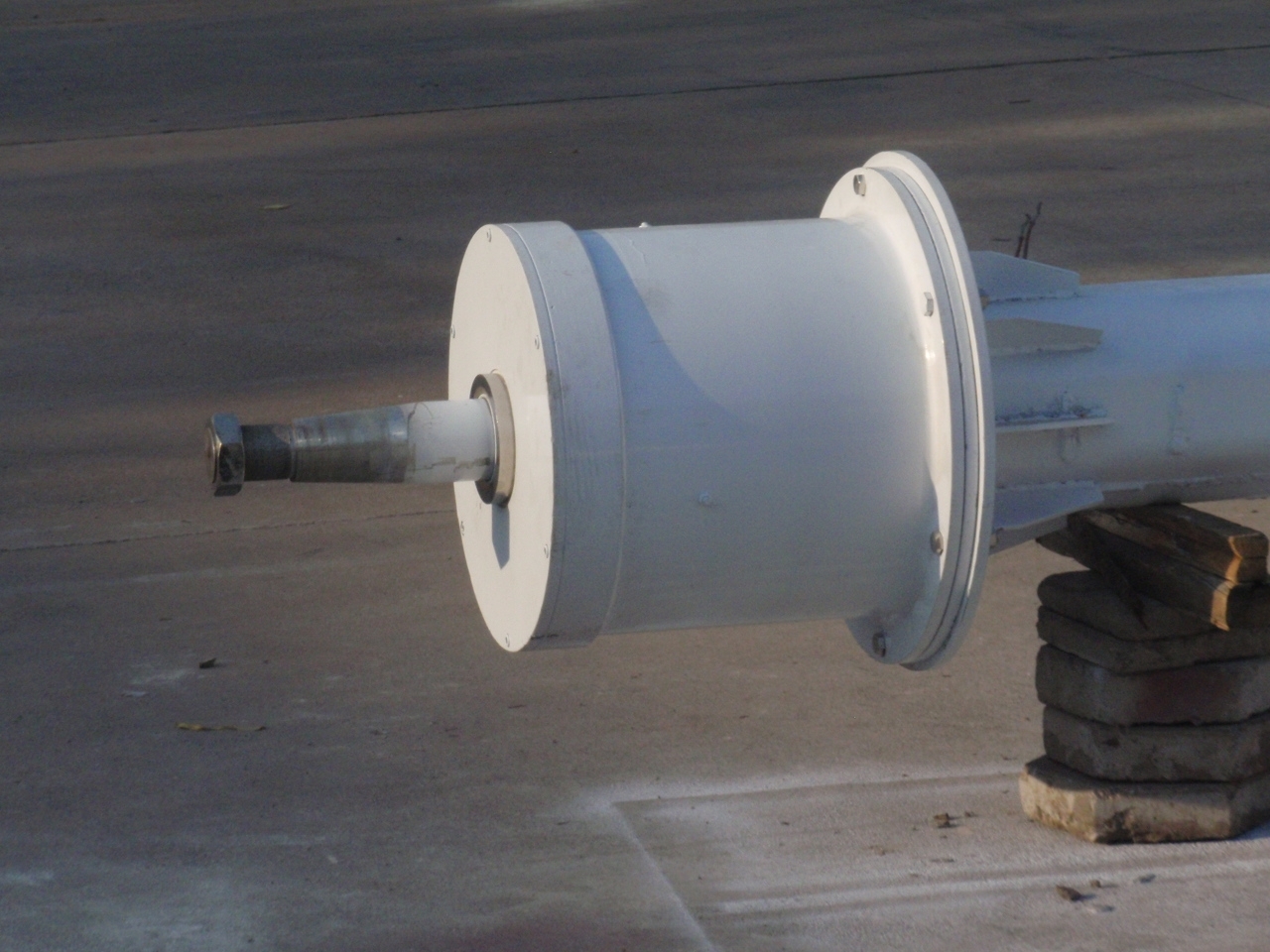

Generator Body
Features high-grade Neodymium Iron Boron permanent magnets, each tested for magnetic flux by authorized institutions. Engineered for low starting torque while maintaining high generating efficiency through optimized internal structure.
Durable 10kW VAWT System with MPPT Controller - 20 Year Design Life 0

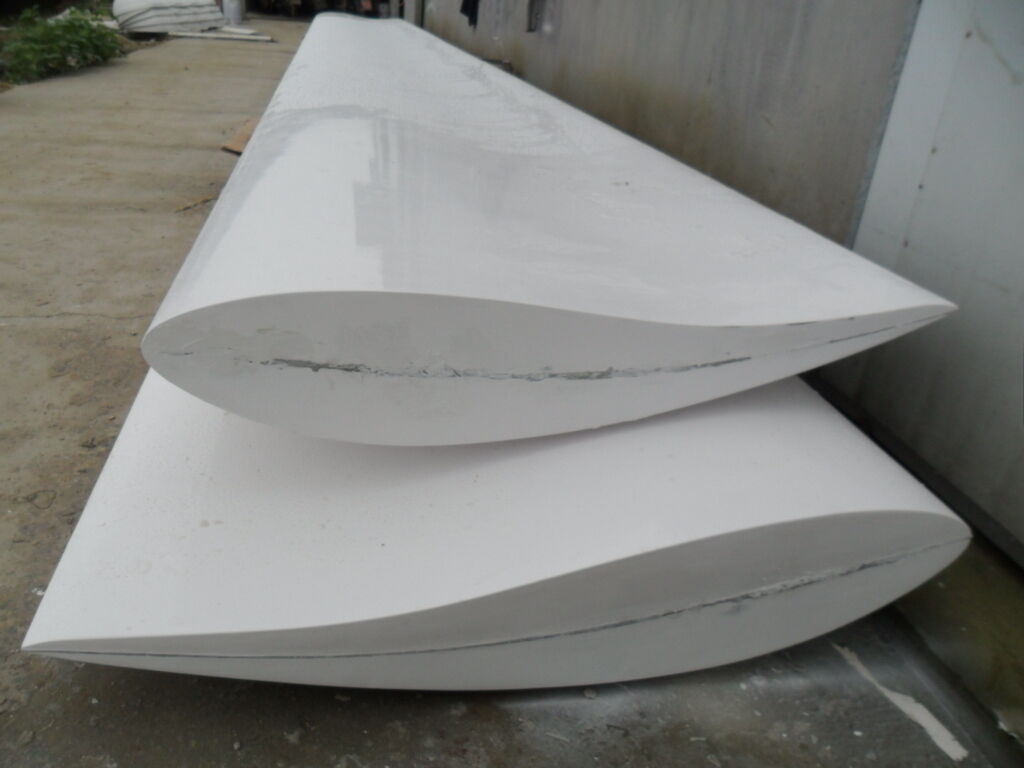

Blade Specifications
Streamline shape with 3 reinforced fiber plastic blades. Manufactured using unidirectional fiber fabric and epoxy resin molds with inner foam core construction. Designed for low noise operation, excellent balance, and superior fatigue resistance.
Durable 10kW VAWT System with MPPT Controller - 20 Year Design Life 1

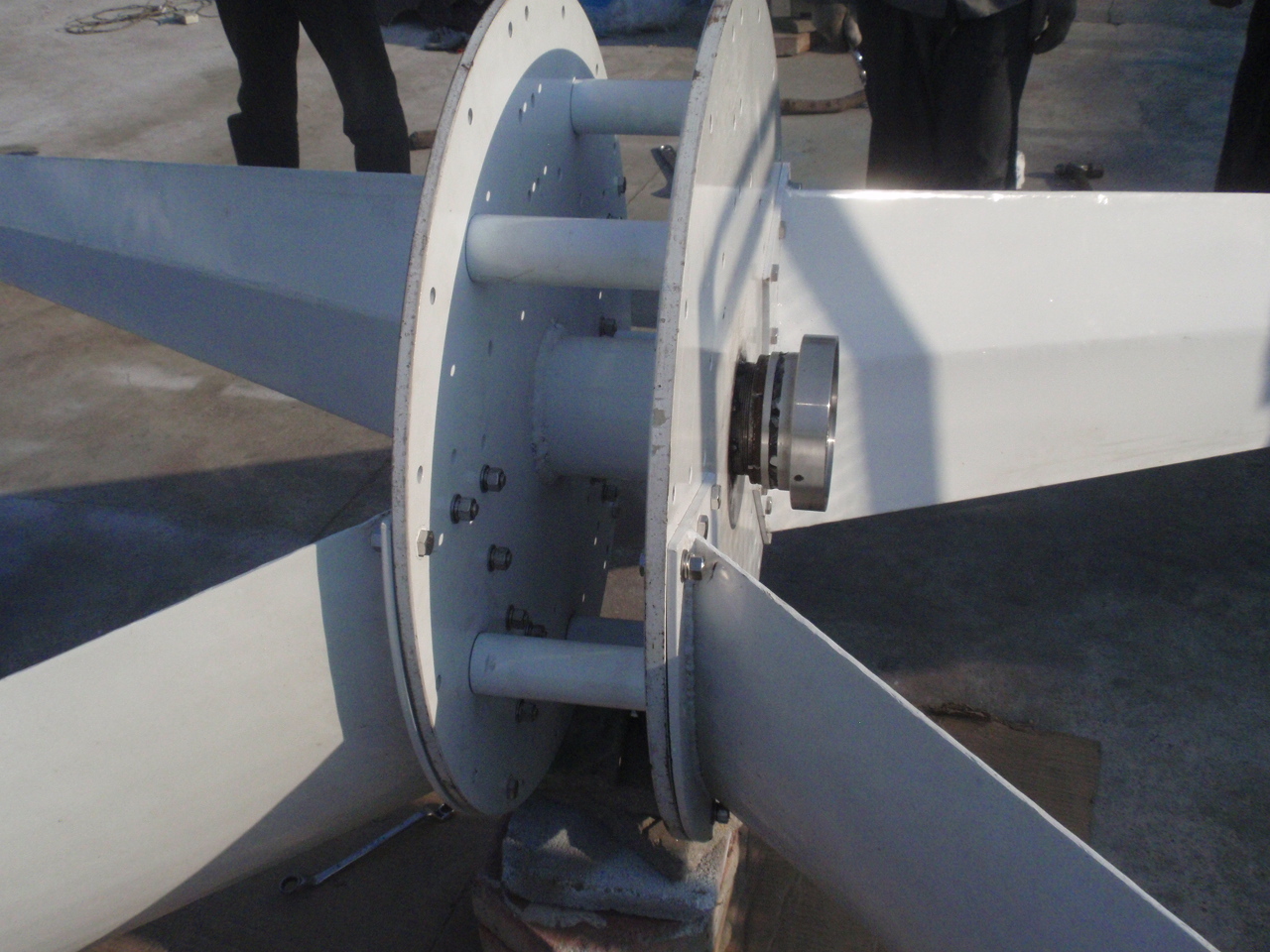

Wheel Hub & Connectors
Precision-made steel wheel hub connects blades to generator. Blades connectors constructed from Q235 plate with anti-corrosion surface treatment for durable performance.
Durable 10kW VAWT System with MPPT Controller - 20 Year Design Life 2
Durable 10kW VAWT System with MPPT Controller - 20 Year Design Life 3
Durable 10kW VAWT System with MPPT Controller - 20 Year Design Life 4
Tower Options
Available in Q235 guy wire tower with anti-corrosion painting or free stand tower with hot dip galvanized plastic spraying for various installation requirements.
Durable 10kW VAWT System with MPPT Controller - 20 Year Design Life 5
On-grid Controller

Brake function will be made when there is problem in on-grid inverter and disconnects the state grid. Controller still delivery the stable current even though it is strong wind and there are full indications including wind energy indication, unload indication, delay stop indication, under voltage indication, grid electricity indication. The emergency brake button at the back will force to stop the rotation.

Durable 10kW VAWT System with MPPT Controller - 20 Year Design Life 6
On-grid Inverter

It uses IPM from Mitsubishi as the power components and American ATEMEL company microprocessor as figure controller. Perfect protection, warning functions, MPPT (Maximum Power Point Tracking) technology is matched on the inverter and it is also pure sine wave output, automatically synchronized with the grid tracking, power factor close to 1, Current low harmonic content, non-polluting power grid, no impact.

Durable 10kW VAWT System with MPPT Controller - 20 Year Design Life 7

Performance Curves
Durable 10kW VAWT System with MPPT Controller - 20 Year Design Life 8
Additional Technical Specifications
  • Generator Type: Permanent magnetic synchronous style
  • Surface Treatment: Multi-layer painting including base coat (2 layers), anti-corrosion paint, and surface finish
  • Complete System Includes: Base flange, guy wires, wire tighteners, ground anchors, nuts, screws, bolts, and cables
  • Off-Grid System Requirements: 32 x 12V 100AH batteries (not included in base price)
  • Certifications: CE product certificate and ISO factory report
